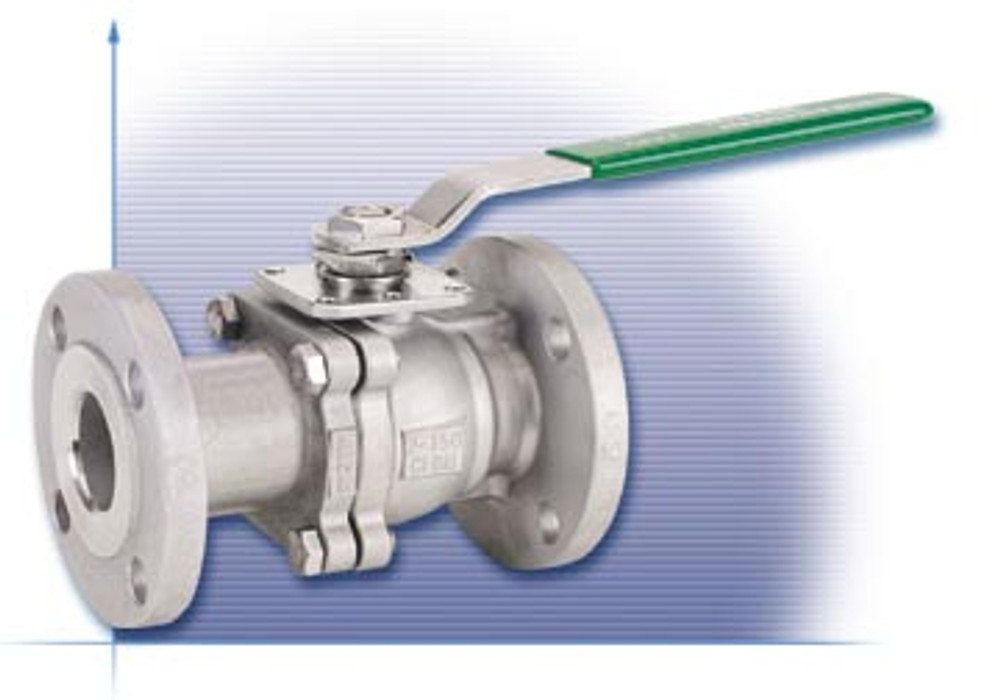

Description
Features and Benefits:
-
Full Port Design
Full port construction improves flow characteristics for greater process efficiencies -
Blow-Out-Proof Stem
Stem is bottom loaded to prevent removal when valve is in service -
Locking Device
Enables plant personnel to secure valve in open or closed position when manually operated -
Live-Loaded Stem Packing
Provides constant load on the stem seal and extends service life -
Corrosion Resistant
Made of 316 stainless steel (A351 Gr. CF8M) for greater chemical resistance and longer service life -
ISO 5211 Mounting Pad
Operating / Test Conditions:
-
Temperature Range (RTFE): -20 to 450 F
-
Maximum Working Pressure (RTFE):
ANSI 150: 275 PSI WOG @ 100 F
ANSI 300: 720 PSI WOG @ 100 F - All valves are shell and seat tested to ANSI/ASME B16.34 and API 598
- Length to ANSI B16.10
Connection to ANSI B16.5
